Kit-ul de automatizare deschidere porti batante este echipat cu doua motoare de 40W cu o viteza maxima de rotatie de 200rpm ce pot deschide sau inchide porti cu o greutate maxima de 200 kg si o lungime maxima de 2.5 metri.

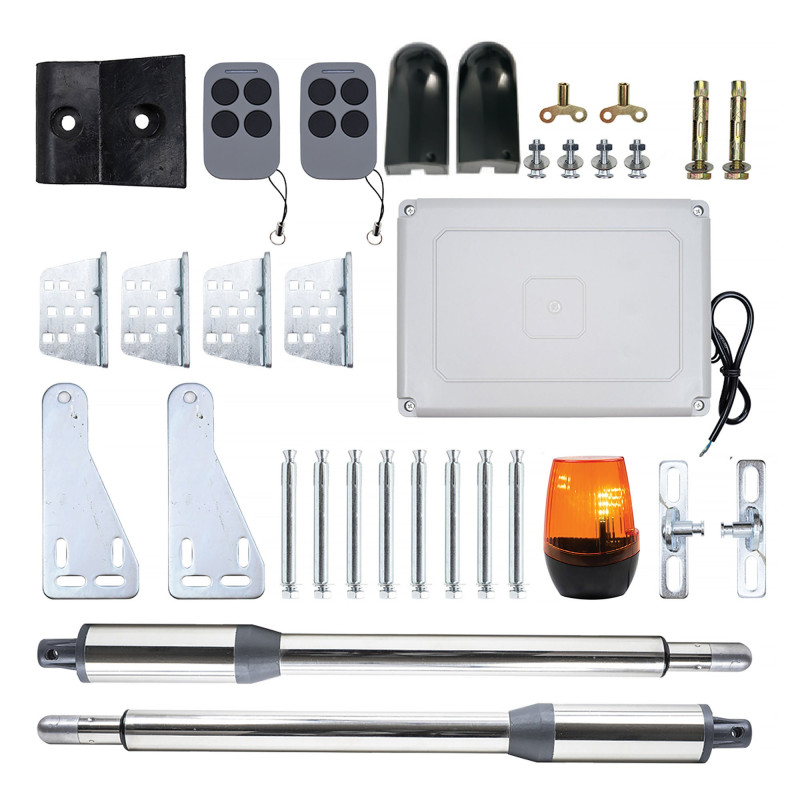

Acest kit de automatizare poarta batanta PNI MAB300 include componentele de baza necesare punerii in functiune a unui sistem practic de control acces: unitate de control, doua motoare cu piston (extindere maxima 300 mm), doua telecomenzi, doua fotocelule, lampa de avertizare, opritor din cauciuc si kit accesorii de montaj.
Caracteristici motor:
alimentare: 24V;
putere: 40W x 2;
greutate maxima poarta: 200 kg;
lungimea maxima a foii de poarta: 2.5 m x 2;
viteza de alungire a bratului: 1.6 cm / sec;
viteza motor: 250 rpm;
rezistenta la apa: da, IP55;
alungirea maxima de lucru: 300 mm
Control de la distanta, dispozitive compatibile
Poarta poate fi deschisa si inchisa din telecomanda. Sistemul pentru deschidere porti batante suporta conectarea altor dispozitive de control acces cum ar fi:
yale electromagnetice;
electromagneti de retinere;
butoane de acces;
tastaturi de acces.
Optional, sistemul poate fi conectat la un sistem solar sau la o baterie de backup de 24V.
Caracteristici telecomanda:
baterie: alcalina, 23A, 12V (inclusa);
dimensiuni: 38 x 14 x 58 mm;
distanta de comunicare: pana la 50 m;
frecventa: 433MHz.
Inchidere automata cu temporizare
Sistemul de automatizare porti poate fi configurat sa le inchida automat dupa un interval de timp prestabilit.
De asemenea, portile pot fi setate sa se deschida sau sa se inchida simultan, cu un decalaj de maximum 10 secunde intre ele, sau sa permita deschiderea unei singure porti din cele doua.
Caracteristici lampa:
alimentare: 230V;
putere: 1.5W;
dimensiuni: 90 x 80 x 140 mm.
Detectie obstacol
Fotocelulele ofera protectie suplimentara, detectand obstacole si prevenind inchiderea accidentala in cazul prezentei unei persoane sau a unui obiect intre porti.
Caracteristici fotocelula:
alimentare: 12 / 24V;
distanta de comunicare: pana la 10 m;
dimensiuni: 75 x 30 x 50 mm.
Kitul pentru automatizarea portilor batante PNI MAB300 combina performanta cu usurinta in utilizare si este ideal pentru cei care doresc sa automatizeze portile batante, oferind un sistem de incredere si confort pentru gestionarea accesului in curte sau in spatii private.
lungimea maxima a foii de poarta 2.5 m x 2, viteza motor 250 rpm, alimentare 24 V, greutate maxima suportata 200 kg, IP55, putere 40W x 2, frecventa comunicare telecomanda 433 MHz
Setul contine
motor, panou control, lampa, fotocelule (2 bucati), telecomanda (2 bucati), accesorii de montaj, manual utilizare in limba romana
